Tem-laser technology Co., Ltd （Laser supermarket） .: Superluminescent Diodes (SLD-1310nm)

Product Description

SLED (Super luminescent LED) light source module is the kind of work in a wide spectral range of the mode of superradiant light. Compared to other traditional SLED source (work in ASE mode), in the same drive current conditions, the output spectrum of a wider SLED low coherence light output characteristics for reducing the Rayleigh (Rayleigh) scattering noise is extremely beneficial to combine the advantages of high output optical power and wide spectral range, can effectively reduce the detection noise, improve the spatial resolution (for OCT

Features:

Pro	Sym	Min	Typ	max	unit
Fiber output power	Po	--	--	2	mW
Operating wavelength	c	1290	1305	1320	nm

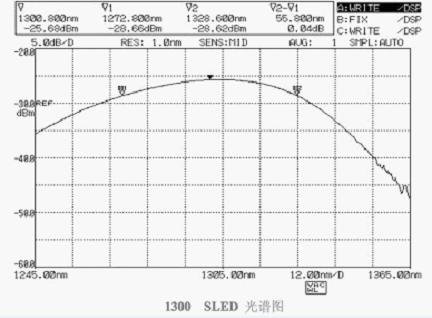

3dB spectral width		--	55	60	nm
Power stability		--	--	1	%
Input voltage	V	176	--	260	VAC
Power consumption	Pc	--	--	100	mW
Operating Temperature	Tw	0	--	40
Storage Temperature	Ts	-40	--	80
